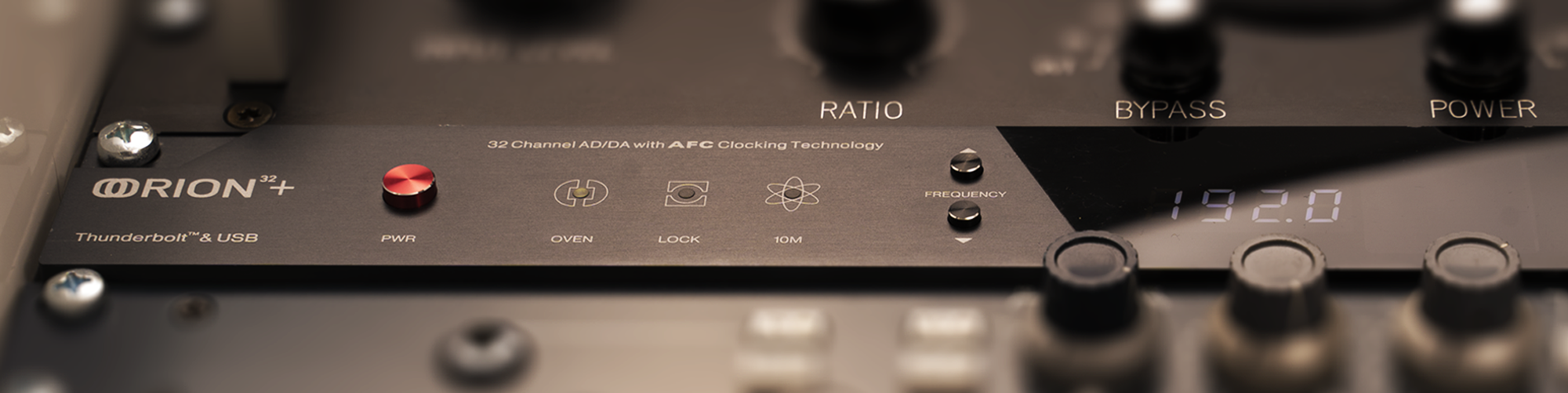

Antelope Orion 32+ | Gen 3 音頻接口

Antelope Orion 32+ | Gen 3 音頻接口

全店,全單 購買 滿HK$1000,即享免運優惠

HK$20,380.00
{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}
{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}
訂貨後,需1-2週送貨時間
{{ title.name_translations | translateModel }} : {{variationName[$index] | translateModel}}
數量
數量
一次最大商品購買數量限制為 99999
該數量不適用,請填入有效的數量。
售完

商品存貨不足,未能加入購物車

您所填寫的商品數量超過庫存

商品購買上限為 {{ product.max_order_quantity }} 件

現庫存只剩下 {{ quantityOfStock }} 件

若想購買,請聯絡我們。

商品描述

64 SIMULTANEOUS
HI-RES AUDIO CHANNELS
VIA THUNDERBOLT™

Connects seamlessly with any DAW on PC or MAC. Orion32+ | Gen 3 features low-latency recording & playback of up to 64 simultaneous 24/192 audio channels via Thunderbolt™ and up to 32 channels over USB. The sleek single rack space unit features 8x DB25 connectors for Analog I/O. Digital connections are 1x MADI, 2x ADAT, and

1x S/PDIF.


SPECIFICATIONS

ANALOG

Analog Inputs
4 x D-SUB 25
(32 channels total),
+24 dBu max, 11.2 kOhms

Analog Outputs
4 x D-SUB 25
(32 channels total),
+24 dBu, 56 Ohms
2 x Monitor Outs
on TRS 1/4 Jacks

D/A Monitor Converter
Dynamic Range: 129 dB
THD + N: -108 dB

A/D Converter
Dynamic Range: 121 dB
THD + N: -112 dB

D/A Converters
Dynamic Range: 120 dB
THD + N: -107 dB

DIGITAL

Digital Inputs
1 x Fiber Optic MADI (up to 64CH)
2 x ADAT (up to 16CH)
1 x S/PDIF

Digital Outputs
1 x Fiber Optic MADI (up to 64CH)
2 x ADAT (up to 16CH)
1 x S/PDIF

USB I/O
USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz,
32 channels I/O, Type B

Thunderbolt™
1 x Thunderbolt™ (64 channels I/O)

CLOCKING

Word Clock Input
1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz

Word Clock Outputs
2 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz

Atomic Clock Input
1 x 10M Input @ 75 Ohms Vpp on BNC

Clocking System
4th Generation
Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator

Clock Stability
<+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF

Clock Aging
< 1 ppm per year

Clock Calibration
< +/-0.001 ppm Sample Rates (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192

OTHER

Operating Temperature
0-50°C, 32-122°F

Weight (Approx)
3kg/ 6.6 lbs

Dimensions (Approx)
Width: 483 mm / 19”
Height: 44 mm / 1.75”
Depth: 220 mm / 8.66”

Electrical specs
AC Universal input: ~95-245 V
Power Consumption: 20 Watts Max

In the box
Orion 32+ | Gen 3
Warranty Card
Power cable
USB cable
